Description

COOL APARTMENT. WARM FLOOR.

Cosy living areas are cool. How does that work? It’s simple! Variotherm floor heating systems allow you to combine hip design with cosy warmth. Stone, tile, laminated or parquet floors become warm surfaces – you will love to walk around barefoot! And speaking of bare: To make sure your wallet isn’t bare, all Variotherm floor heating systems are energy-saving low temperature systems.

7 GOOD REASONS FOR VARIOTHERM FLOOR HEATING SYSTEMS

  • 6 individual complete systems from one source
  • Energy-saving low temperature systems
  • Ideal for combination with heat pumps, solar and biomass systems
  • Optimised heat transfer and laying accuracy:
    The VarioProFile pipe has 15 % more surface area than other pipes
  • Even floor temperature thanks to accurate laying systems
  • Fast and simple installation
  • 10-year warranty

Technical properties. Models. Types.

Wherever screed is used, the five systems, VarioRast, VarioFix, VarioClip, VarioRoll or VarioNap, provide the perfect solution for all building situations. The extremely robust VarioSolid sets new benchmarks for surfaces in industrial buildings.

Optimierte Wärmeübertragung durch eine bis zu 15 % größere Oberfläche. Das Rohr ist flexibel, leicht biegbar und extrem formstabil.

VARIOPROFILE-PIPE 16 x 2 LASER

  1. Raised temperature resistance polyethylene PE-RT with profiled surface structure
  2. Adhesive layer
  3. Homogeneous laser-welded solid aluminium pipe
  4. Adhesive layer
  5. Raised temperature resistance polyethylene (PE-RT)

Advantages

  • Optimised heat transfer through up to 15 % larger surface
  • Unique innovation
  • 10 year guarantee with certificate
  • High pressure and temperature resistance (10 bars, +95 °C)
  • Flexible, easy to bend, extremely good hydrostatic stability
  • 100 % oxygen diffusion-tight

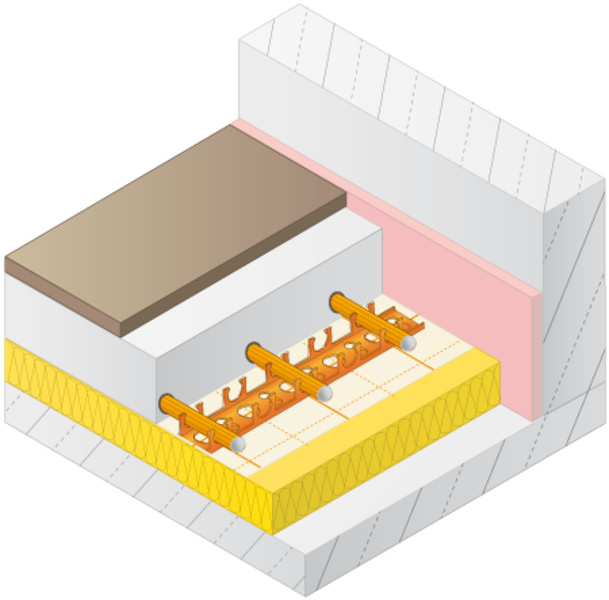

VARIORAST

  • Grid foil with 50 mm grid size
  • VarioBar with self-adhesive strip on the back
  • Fixing needle for VarioBar
  • VarioProFile pipe 16 x 2 mm Laser

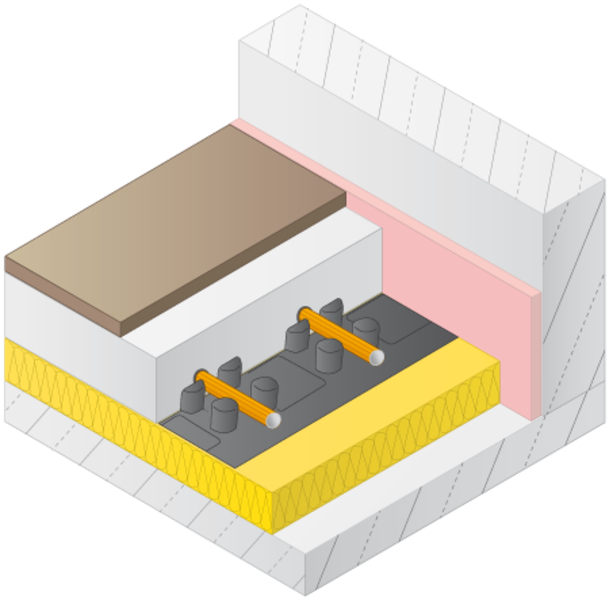

VARIOFIX

  • VarioFix panel, 1400 x 800 mm (without insulation). For fastening the VarioProFile pipe and as a separating layer. Especially for concrete subsurfaces
  • VarioProFile pipe 16 x 2 mm Laser
VarioClip

VARIOCLIP

  • Construction steel grid
  • VarioClips for fixing the pipes
  • VarioProFile pipe 16 x 2 mm Laser
Die Variotherm Fußbodenheizung VarioRoll verwandelt jeden Raum in Kürze in wohlig warme vier Wände - die behagliche Wärme von unten.

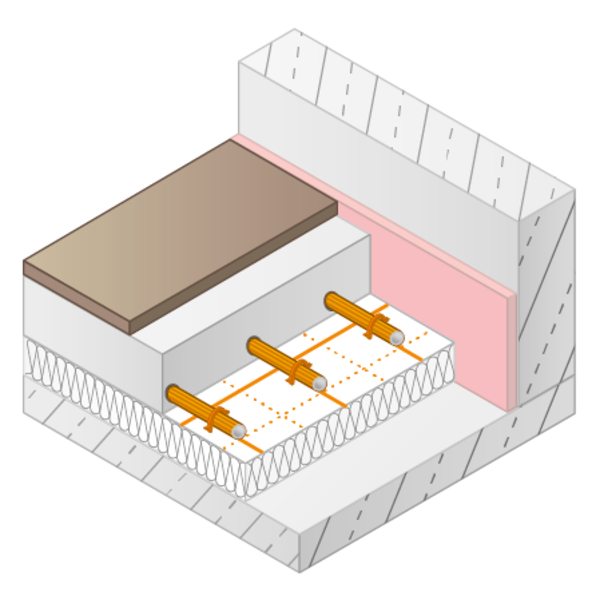

VARIOROLL

  • VarioRoll made of special impact sound polystyrene (20 or 30 mm) with laminated foil
  • Stapler pins for affixing the pipes
  • VarioProFile pipe 16 x 2 mm Laser

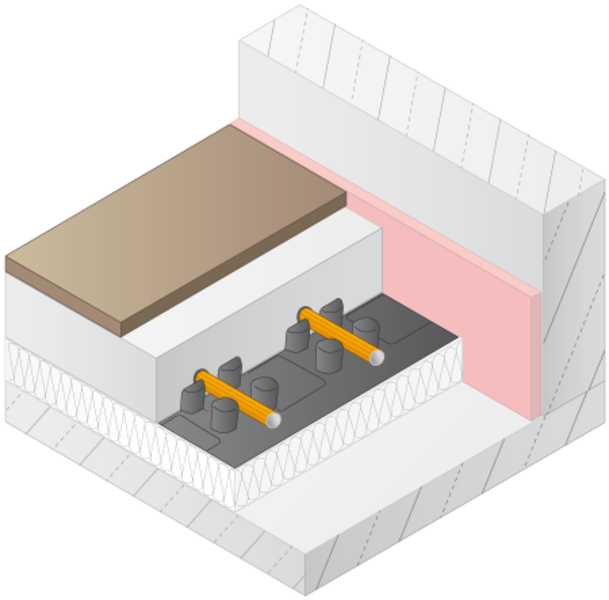

VARIONOP

  • Nop panel 1400 x 800 mm (insulation thickness 11 or 30 mm). Interim bridges raise up the VarioProFile pipe, so that the heating screed encloses the pipe completely.
  • VarioProFile pipe 16 x 2 mm Laser
Die Variotherm Industriefußbodenheizung erwärmt industriell genutzte Räumlichkeiten auf effiziente und behagliche Art und Weise.

VARIOSOLID (Industrial UFH)

  • Concrete panel and reinforcing bar grid (provided by the customer)
  • Fastening with binding wire
  • VarioModule pipe 20 x 2 mm Laser
  • Spacer, separating layer and prepared thermal insulation (provided by the customer)

      > more infos

SIMPLY. QUICKLY. INSTALLED.

Depending on the model and construction requirements, the VarioProFile pipe can be precisely laid in different ways, while maintaining its form: clips, VarioBars, stapler pins, panels with grooves … Thought has been given to every possible subsurface and every attachment method. All working steps have been tried and tested in practice and can be carried out by a single installer.

Alle Arbeitsschritte sind praxiserprobt und in einer Einmann-Montage umsetzbar. Nach dem fertigen Verlegen wird das System an den Heizkreisverteiler angeschlossen.
